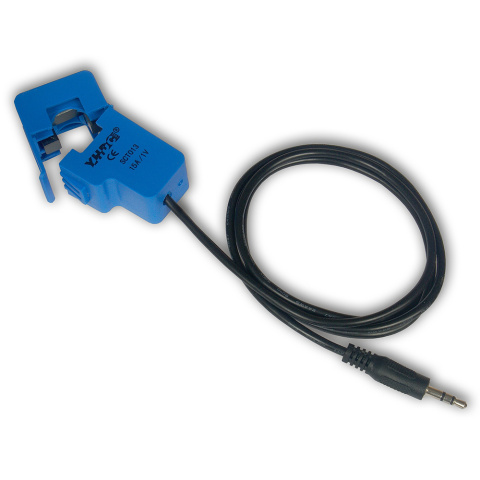

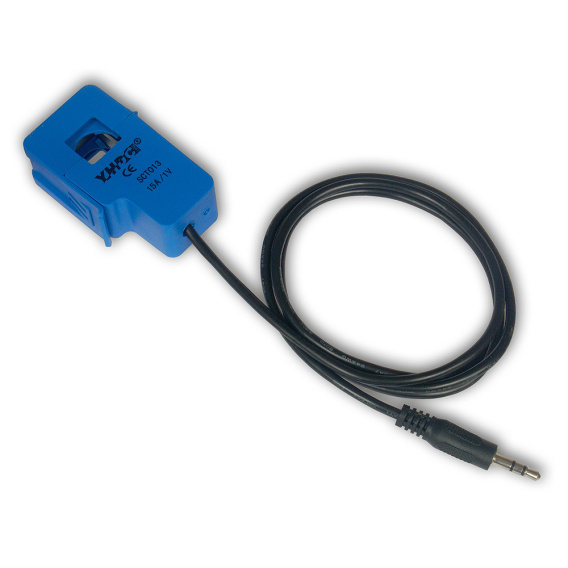

• 15A/1A Induction current sensor SCT-013-015 (1V)

The Symbol : LANKON-203

SCT-01-015 Non-invasive AC Current Clamp Sensor. Measures the intensity of the variable current flowing in the cable without the need for it.

No goods
24.90
24.90
Enter your email
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Brak towaru
Leave your phone

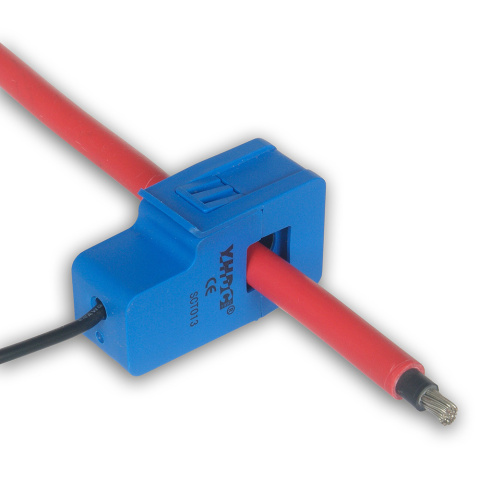

Measures the intensity of the variable current flowing in the cable without the need for it. The measurement takes place after the magnetic clamp is put on a single current cable - the sensor will not indicate anything if it is put on a current and zero cable at the same time. At the output of the sensor, there is a voltage, variables proportional to the current flowing in the cable on which the clash is assumed. The sensor can be used to measure variable current by arduino analog inputs or other paltforms. The sensor falls on the LK3 - select from the SCT013-30 menu and the result must be corrected in the multiplier by a factor 0.5

Technical Specifications:
Current measurement range: 0 ÷ 15 AC
Maximum diameter of the measuring cable: fi 12 mm
Built -in burdening resistor: Yes
Output voltage: 0 ÷ 1 V AC
cable length: 1 m
mass: 45 g
