• PIR motion sensor HC-SR501

The Symbol : LANKON-063

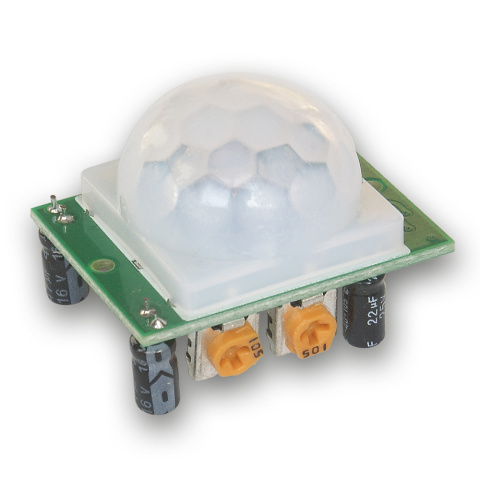

PIR sensor type HC-SR501 allows for motion detection based on the analysis of infrared radiation.

4.49
4.49
opak Add to wishlist
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
Leave your phone

PIR sensor type HC-SR501 allows for motion detection on the basis of infrared radiation. The detector detects the change of 2 separated IR windows and the amplifier converts the signal pulse with a high logic level. Such a signal can easily be used to drive a transistor or logic input processor.

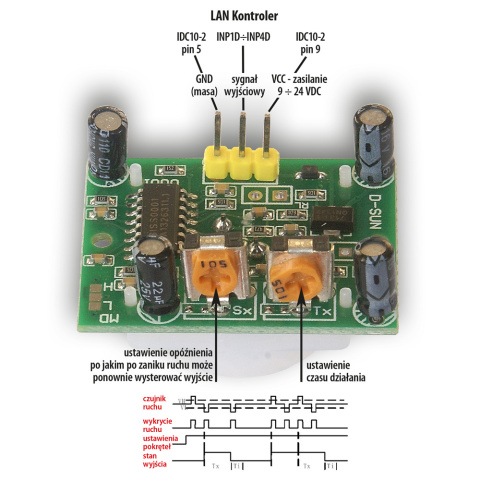

In the case of the use of Lan Controller detector output must be connected to a logic input INP1-4D. Note, however, that forced the detector Low Low condition is a state of rest, and the high high points to the liberation PIR-a.

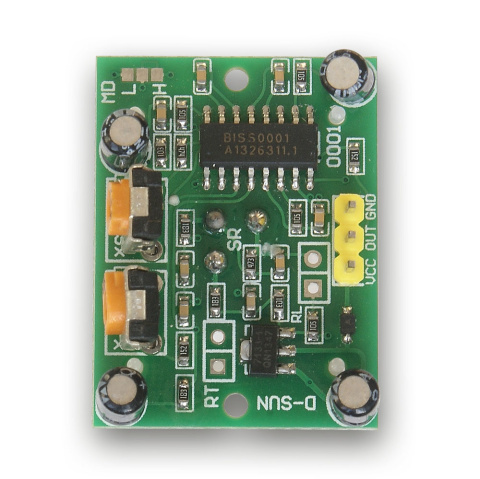

On the board there are 2 potentiometers described as Sx and Tx.

Tx sets the high state after operation of the detector - for several time s potentiometer should be a paragraph. roughly 9 per hour.

Sx- sets the delay vigil after the final liberation - here changes very little adjustment in a short time frame.

The sensor operates in retriggerin, i.e. in the case of motion detection at the output is maintained at all times high.

Tech data:

  • Power supply: 5-24V
  • Working range: up to 7m
  • Viewing angle: 360st x100st
  • Signalling: High - motion detection, Low - lack of exercise
  • Dimensions of 32x25x27mm
