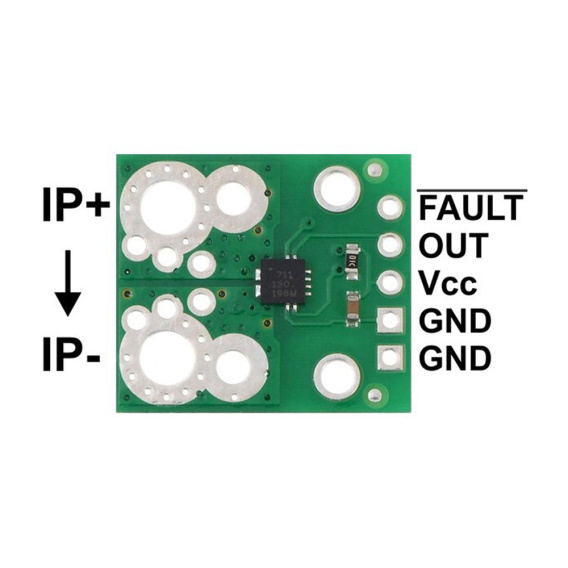

Current Sensor Carrier 0A-30A ACS724
The Symbol :
LANKON-043
Current sensor operating in the range of 0-15.5A to 15.5 A based on the Hall effect. The output is an analog voltage. Power supply from 3 V to 5.5 V, so it can work directly with both 3.3 V and 5 V systems
| Enter your email |
| Shipping within | 24 hours from the moment of positive payment authorization |
| Shipping price | Depends on the delivery location |
| Availability |
Out of stock
|
| Leave your phone |
Current sensor operating in the range of 0 to 15.5 A based on the Hall effect. The output is an analog voltage. Power supply from 3 V to 5.5 V, so it can work directly with both 3.3 V and 5 V systems.
For low voltage systems only! (below 100V).
Note - modules used for testing - soldered pins
Technical specifications:
- Logical part supply voltages: 3.0 ÷ 5.5V
- Measuring range: from –15.5 A to +15.5 A
- Logical part current consumption: 4 mA
- Sensitivity for 3.3 V supply: 90 mV/A
- Sensitivity for 5V supply: 136 mV/A
- Passband: 100 kHz
- Operating temperature: from -40°C to +125°C
- Module weight: 1 g (without connectors)
- Dimensions: 18 x 20.5 mm
- Circuit resistance: 0.6 mΩ
