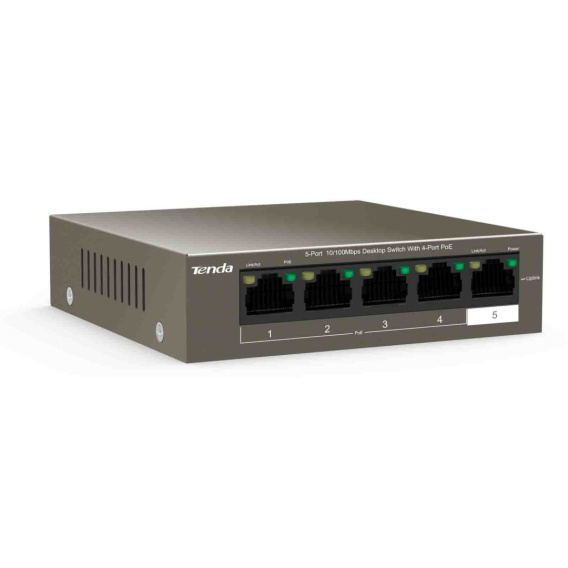

Switch POE TENDA TEF1105P-4-38W
The Symbol :
TENDAA-001
Switch Tenda TEF1105P-4-38W to 5 portowy przełącznik Fast Ethernet z 4 portami PoE. Switch posiada metalową obudowę typu desktop. Idealnie nadaje się do urządzeń LK firmy Tinycontrol.
121.77
121.77
121.77
| Shipping within | 24 hours from the moment of positive payment authorization |
| Shipping price | Depends on the delivery location |
| Availability |
Few
|
| The bar code | |
| EAN |
| Leave your phone |
The Tenda TEF1105P-4-38W is a 5-port Fast Ethernet switch with 4 PoE ports. It features a desktop-style metal housing and is ideal for Tinycontrol LK devices.
The switch is equipped with 6KV lightning protection. In many projects, access points and cameras are often installed outdoors or in elevated locations, which increases the chance of lightning striking cameras and PoE switches. As a result, individual devices can be damaged, and with them, the entire network. The TEF11 series switches feature professional lightning protection for ports and power supplies, effectively suppressing lightning current. During lightning storms, the Tenda TEF11 switch can also ensure stable and reliable operation of the surveillance network and guarantee normal image transmission.
The switch is equipped with 6KV lightning protection. In many projects, access points and cameras are often installed outdoors or in elevated locations, which increases the chance of lightning striking cameras and PoE switches. As a result, individual devices can be damaged, and with them, the entire network. The TEF11 series switches feature professional lightning protection for ports and power supplies, effectively suppressing lightning current. During lightning storms, the Tenda TEF11 switch can also ensure stable and reliable operation of the surveillance network and guarantee normal image transmission.
Due to the complex monitoring environment, cabling and network design often encounter the problem of insufficient network transmission distance when the distance of each camera terminal from the monitoring center varies. Tenda TEF11 series PoE switches use a common existing twisted-pair cable and can support data transmission up to 250 meters.
Ports 1 ÷ 4 comply with the IEEE802.3af power standard. The entire switch offers a maximum PoE power output of 35W, while each port provides a maximum PoE power output of 15W. The ports can be used to power and exchange data with access points and IP cameras.
Ports 1 ÷ 4 comply with the IEEE802.3af power standard. The entire switch offers a maximum PoE power output of 35W, while each port provides a maximum PoE power output of 15W. The ports can be used to power and exchange data with access points and IP cameras.
Key Features:
- 5x 10/100 Mbps RJ45 ports (PoE on ports 1-4) with auto-negotiation
- 4x IEEE 802.3af PoE ports
- Maximum output power per PoE port: 15 W
- Maximum switch output power: 35 W
- Desktop metal housing
- 38W output power supply
- Transmission distances up to 250 meters, beyond the 100-meter transfer limit
- 6 KV lightning protection
- Supports 10/100M full and half-duplex
- Store-and-forward data transfer
- Supports MAC address learning and aging
- Ability to connect to an IP camera
- Plug-and-play operation, no configuration required
| Standards and protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af |
| Ports | 5x 10/100BASE-TX ports (ports 1 ÷ 4 PoE) |
| Port Functions | Auto-Negotiation/Auto MDI/MDIX |
| Switching | Bandwidth up to 1 Gb/s, packet forwarding rate up to 0.74 Mpps |
| Power Supply | AC: 100-240V~50/60Hz DC: 48V/0.8A power supply Max. PoE output power per port: 15 W Max. switch output power: 35 W |
| MAC Address Table | 1K |
| PoE Power Supply | Ports 1 to 4 – IEEE802.3 af standard Max. PoE output power per port: 15 W In PoE (12+, 36- and 45+, 78-line pair) |
| Power consumption | <38W in full configuration 35W power supply |
| Switching modes | Store-forward and cut-through Wire-speed forwarding |

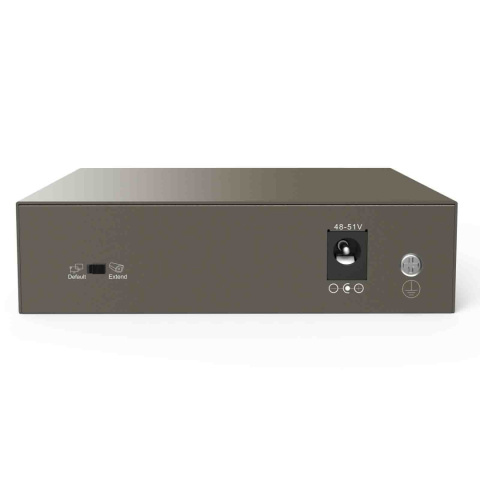

| One-key mode | Standard: The switch operates as a common unmanaged switch, and all switch ports can communicate with each other Extended mode: Power and data transmission distances are up to 250m (10Mbps), replacing extenders and fiber optic cables. This will extend the overall system distance and reduce project costs. |
| LED | Link/Act, PoE Status, Power |
| Lightning Protection | 6kV |
| Dimensions | 100 x 100 x 26 mm |
| Certyfications | FCC, CE, RoHS |
| Operating Temperature | 0°C ÷ 40°C |
| Operating Humidity | 10% ÷ 90%, non-condensing |
