Universal relay board 4x10A
Tile containing 4 relays - LANcontroller LK3 extension (ATTENTION: does not match LK2 and LK1) - in the set a housing with a handle enabling installation on a DIN rail.
79.98
| Shipping within | 24 hours from the moment of positive payment authorization |
| Shipping price | The Lack Of |
| The Availability Of |
Średnia dostępność
|
| Leave your phone |

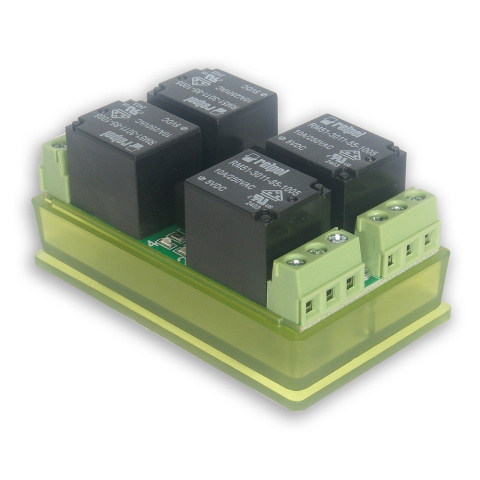

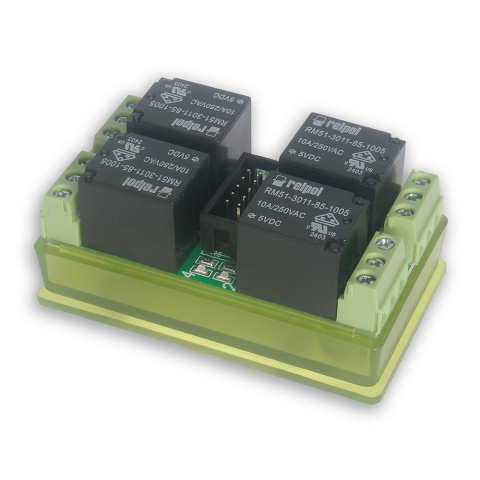

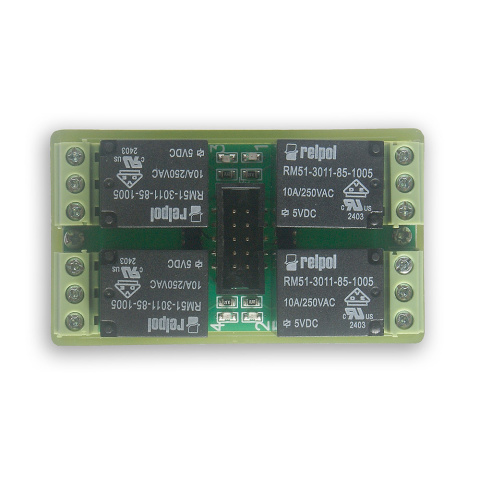

Board containing 4 relays. After connecting to the LAN controller LK3.5, LK3.9, LK4 has the ability to turn on, turn off, reset each of the relays independently. The main application is controlling 4 electrical devices.
Technical data:
- number of relays: 4

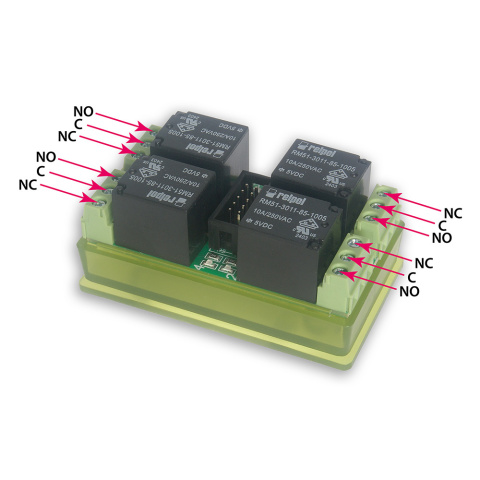

- Relay outputs: C, NO and NC
- Contact material: AgSnO2
- Rated load current in AC1 category:10 A / 250 VAC
- rated load current in category AC1: 20 A / 125 VAC
- rated load current in category DC1: 15 A / 30 VDC
- contact resistance: < 100 mΩ
- AC-1/DC-1: non-inductive or low-inductance loads, resistance furnaces
The high-quality relays from the Polish company Relpol used are characterized by high resistance to shocks. The special design of the contacts, which removes metal oxides with each switch, additionally extends the time of failure-free operation.

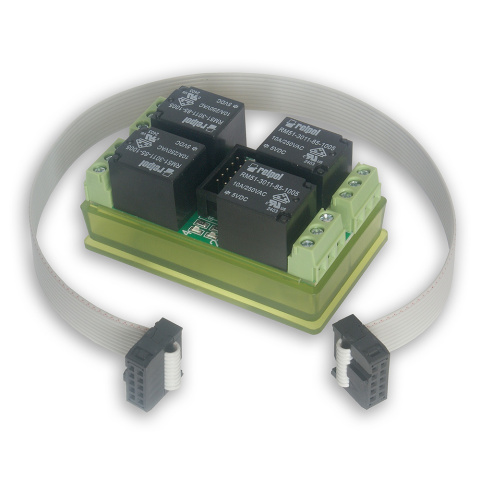

Includes 20 cm control cable with 2x IDC10 plugs

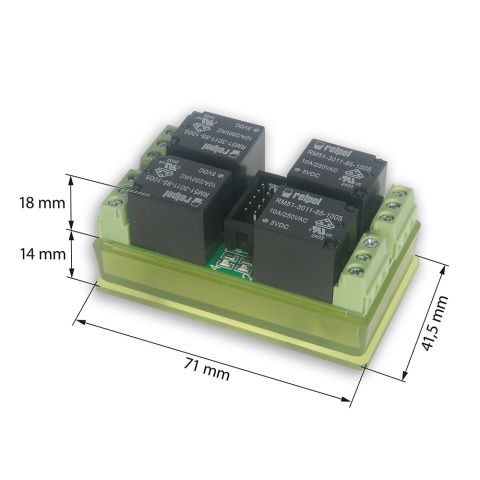

Housing with a handle for mounting on a DIN rail.
